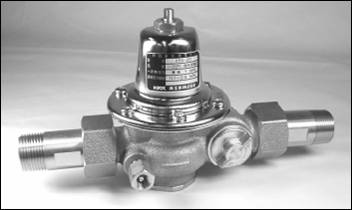

Pressure Reducing Valve

Model : KRX Nom.Size : 20mm

MODEL KRX 20mm

● Operation conditions

　 Working Pressure : Max 1.6 MPa

Working Temperature : 0 ～ 60℃

Usable Fluid : Water

● Features

1. The valve body was specially designed to minimize the noize of water flow.

Model KRX is the quietest pressure reducing valve in Japan.

(P1=0.6MPa, P2=0.2MPa, flow rate 55 L/min : 45dB)

It is suitable for the hotel and the condominium.

2. The strainer is built in for preventing poor operation caused by the

choke of sand, dust, etc..

3. Model KRX has adopted the union joint connection to shorten the time of a

maintenance.
